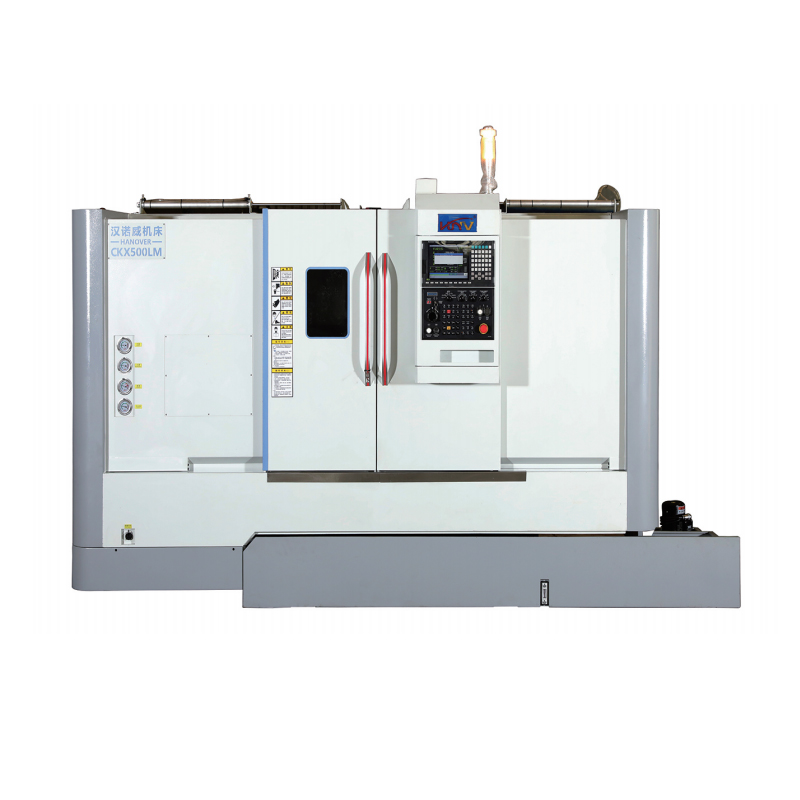

Equipment features:

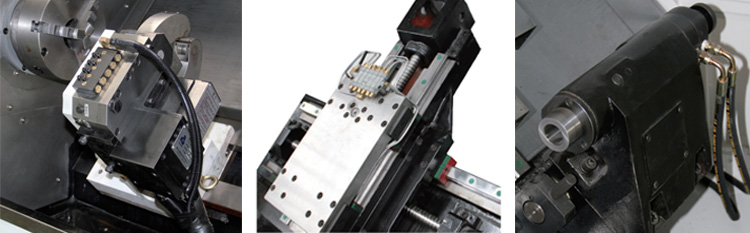

1. The spindle unit with independent sleeve structure is equipped with high-precision special bearings for the spindle, and the lubricating grease for German bearings is used, which greatly reduces the thermal deformation of the spindle unit and improves the thermal stability and accuracy. The maximum speed can reach 4500rpm (A2-5 head) or 4000rpm (A2-6 head); The high rigidity, high speed and high precision of the spindle unit enable the whole machine to be competent for various rough and finish machining.
2. CNC system and drive unit are mature products of famous brands; PLC has been used for many years, safe and reliable; The electrical design of the machine tool is sophisticated, the process is standardized, and the electrical appliances are all European brands, with low failure and durability.
3. After the spindle unit is equipped with chuck and oil cylinder, the dynamic accuracy and durability of the spindle are greatly improved through the detection of dual channel online dynamic balancer and counterweight. The assembly process of the machine tool is fine, and the mechanical precision of the moving part is far superior to the national standard after being corrected by the laser interferometer and the ball and stick instrument.
Equipment parameters:
Main parameter | Unit | CKX630L | CKX800L |
Line rail type 750/1500/2000/3000 | Line rail type 750/1500/2000/3000 | ||
Maximum turning diameter on bed/sliding plate | mm | Φ650/Φ500 | Φ800/Φ640 |
Standard turning diameter | mm | Φ400 | Φ500 |
Block type | mm | Φ540/(50~310Center frame) | Φ650/(50~310Center frame) |
Maximum turning length | mm | 750/1500/2000/3000 | 750/1500/2000/3000 |
Maximum spindle speed | r/min | 2000/1500 | 1500 |
Spindle head form | type | A2-8/A2-11 | A2-11 |
Diameter of spindle through hole | mm | Φ86/Φ112 | Φ112 |
Chuck diameter | mm | Φ320(12")/Φ380(15") | Φ380(15") |
Main motor power | kw | 18.5(Servo)/22(Servo) | 30/22(Servo) |
Bed structure | type | 30°whole/30°whole | 45°whole |
X-axis stroke | mm | 360/360 | 400 |
Z-axis stroke | mm | 850/1550/2150/3150 | 850/1550/2050/3050 |
X/Z axis rapid movement | m/min | 16 | 12 |
Form | type | 125-12T/160-8T | 125-12T/160-12T |
Tool size (turning/boring) | mm | 25*25/40 32*32/50 | 32*32/50 |
Sleeve diameter/form distance | mm | Φ150/L150 | Φ150/L150 |
Taper of sleeve hole | MT NO. | 5#rotate | 5#rotate |
Machining accuracy | level | IT6 | IT6 |
Positioning accuracy X/Z | mm | 0.012/0.018 | 0.012/0.018 |
Repetitive positioning accuracy | mm | x-axis:0.008 | x-axis:0.008 |
mm | x-axis:0.01/0.013 | x-axis:0.01/0.013 | |
Roughness | um | Ra≤1.6/3.2 | Ra≤1.6/3.2 |
Volume (L * W * H) | m | 3.7*2.2*2.2/4.4*2.2*2.2 | 3.8*2.2*2.2/4.4*2.2*2.2 |
Power Supply | KVA | 50 | 50 |
Total weight | kg | 5800/6800 | 6800/7800 |
