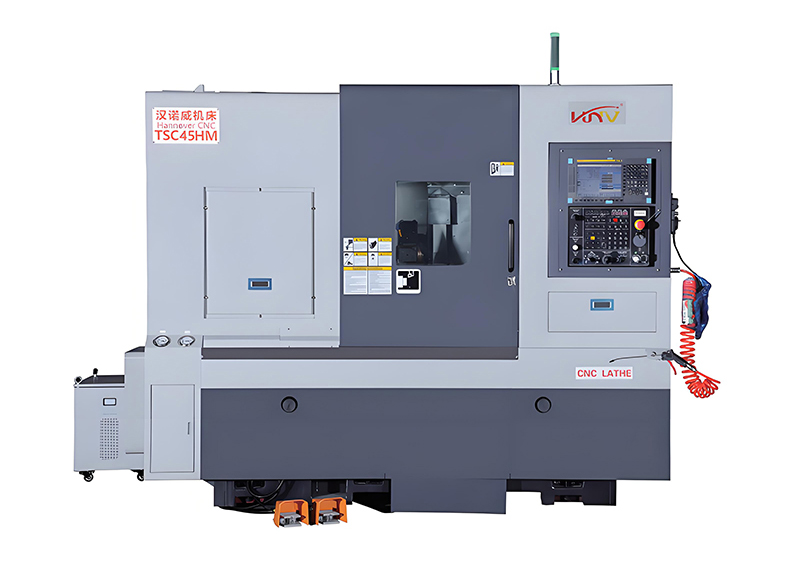

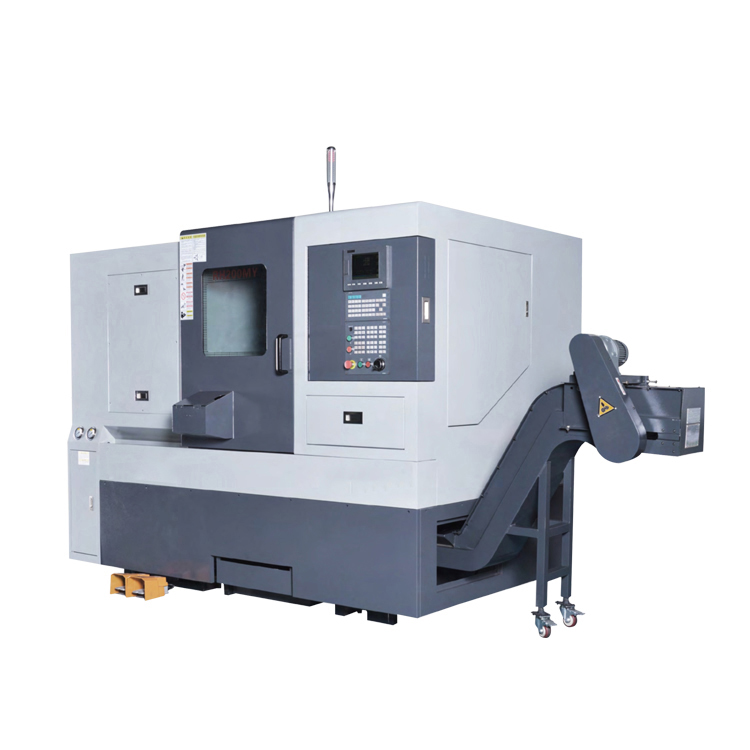

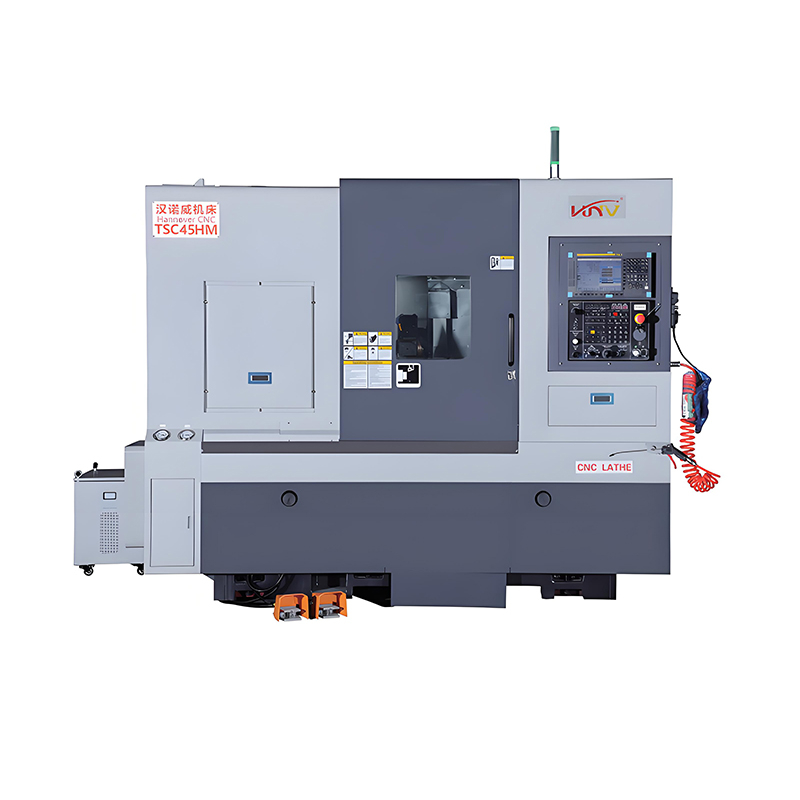

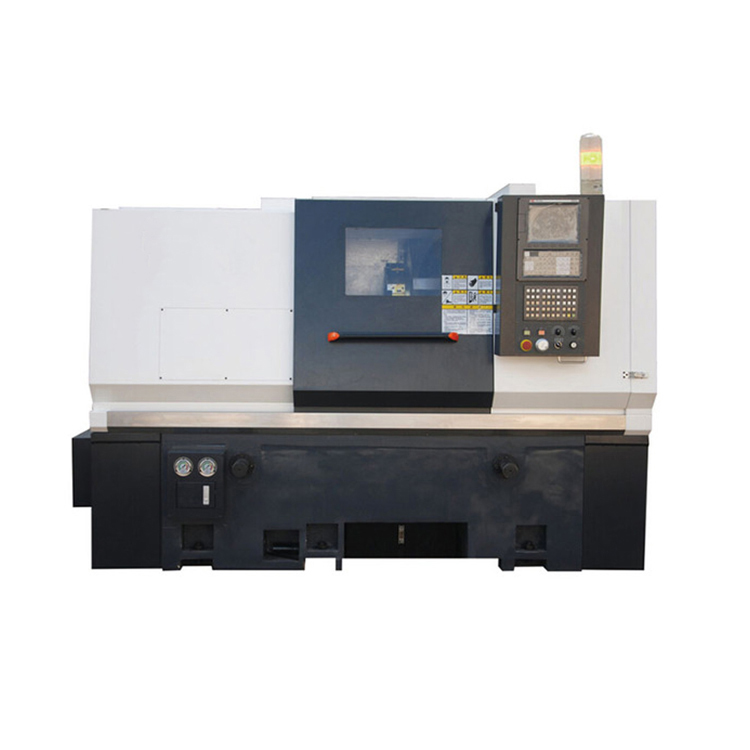

Equipment features:
1. Adopt 30 ° inclined overall layout and integrated structure of bed base;
2. High strength HT300 casting, with dense structure, good strength, appropriate hardness and low friction coefficient;
3. It has self lubrication. The integral box structure of the base bed greatly enhances the overall rigidity and stability of the machine tool, and has the function of vibration absorption, reducing tool loss and improving the quality of the workpiece;
4. The layout of the whole machine is compact and reasonable, and its high speed, high precision, high rigidity and rich configuration provide users with high efficiency and high reliability in use.
Equipment parameters：
| Main parameters (unit: mm) | |||
| Model | TSC36L | TSC36LM | TSC36LMY |
| Maximum turning diameter on the bed surface | Φ460mm | Φ460mm | Φ460mm |
| Maximum machining diameter | Φ400mm | Φ350mm | Φ400mm |
| Maximum turning diameter on sliding plate | Φ260mm | Φ200mm | Φ200mm |
| Maximum machining length | 350 | 300 | 320 |
| Spindle head form | A2-5/6" | A2-5/6" | A2-5/6" |
| Spindle motor power | 7.5kw | 7.5kw | 7.5kw |
| Maximum spindle speed | 5000rpm | 5000rpm | 5000rpm |
| Diameter of spindle hole | Φ56mm | Φ56mm | Φ56mm |
| Bar diameter | Φ42mm | Φ42mm | Φ42mm |
| X/Z axis specification | 35/35 | 35/35 | |
| X/Z screw rod specification | 3210/3210 | ||
| X/Z axis limit stroke | 210/400 | 210/410 | |
| X/Y/Z axis limit travel | 210/70/400 | ||
| X/Y/Z axis screw rod specification | 3210/2508/3210 | ||
| X/Y/Z axis rail specification | 35/30/35 | ||
| Turret Station | NC80-8T/10T/12T | BMT45/12T | BMT40/12T/ER20 |
| Tool size/shank size | 25/Φ32 | 20/Φ32 | 16/Φ25 |
| Diameter of tailstock sleeve | 65mm | 65mm | 65mm |
| Tailstock sleeve stroke | 80mm | 80mm | 80mm |
| Maximum stroke of tailstock | 300 | 300 | 300 |
| Taper hole of tailstock sleeve | Mohs 4# | Mohs 4# | Mohs 4# |
| Overall dimensions (L * W * H) | 2400*1750*1680 | 2400*1750*1680 | 2400*1750*1880 |
| Weight (about weight) T | 3800kg | 4000kg | 4200kg |
