Equipment features:
1.Z-axis with brake, no weight design, up and down high-speed movement, no vibration, high precision.
2.The use of post-chip structure, clean up waste residue, easy to leak.
3.Three-axis full -stroke design, to ensure dynamic accuracy of the machine to improve life expectancy.
4.Withe the disc magazine, open the knife function, improve the tool change speed.
5.Integral molded castings provide a strong load-bearing capacity.
6.High-speed roller linear guide, fast, good rigidity.

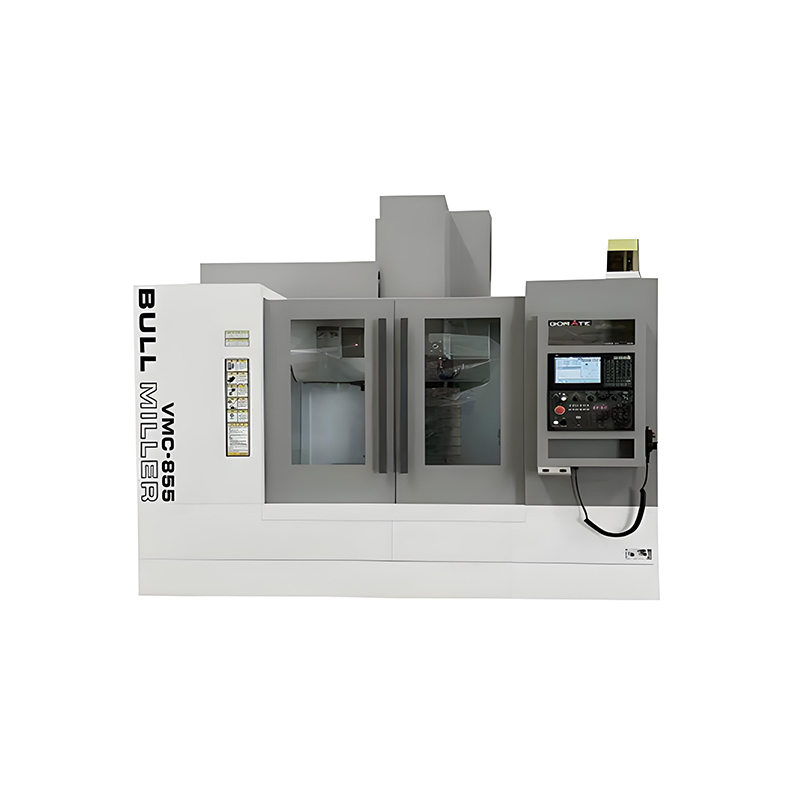

| Model | Unit | VMC-855V | VMC-855H |
| Left and right stroke (X) | mm | 800 | 800 |
| Front and rear stroke (M) | mm | 550 | 550 |
| Up and down stroke (Z) | mm | 550 | 550 |
| Dimension of worktable | mm | 550*1000 | 550*1000 |
| Table T-slot (number size * spacing) | mm | 5-18*90 | 5-18*90 |
| Distance from spindle center to column guide rail | mm | 575 | 575 |
| Distance from spindle end face to worktable | mm | 150-700 | 150-700 |
| Spindle taper hole (model/installation size) | BT40/Φ140 | BT40/Φ150 | |
| Spindle speed | rpm | Belt drive 8000/10000 Direct connection 12000 | |
| X/Y axis ball screw specification | mm | 4016 | 4016 |
| Z-axis ball screw specification | mm | 4016 | 4016 |
| X axis rail specification (roller) | MSR35LE | MSR45LE | |
| Y-axis rail specification (roller) | MSR35LE | MSR45LE | |
| Z-axis rail specification (roller) | MSR35SLS | MSR45SLS | |
| X/Y/Z motor connection mode | Direct connection | Direct connection | |
| Main motor power | kw | 7.5 | 7.5 |
| Magazine capacity | hold | 24 | 24 |
| Mechanical dimensions | mm | 2700*2400*2800 | 2700*2400*2800 |
| Worktable bearing | kg | 500 | 500 |
| Net weight of machine tool | T | 5.5 | 6.0 |
| Model | Unit | VMC1160SL | VMC1370SL | VMC1580SL |
| Left and right stroke (X) | mm | 1100 | 1300 | 1500 |
| Front and rear stroke (M) | mm | 600 | 700 | 800 |
| Up and down stroke (Z) | mm | 600 | 650 | 700 |
| Dimension of worktable | mm | 600*1200 | 700*1400 | 1700*800 |
| Table T-slot (number size * spacing) | mm | 5-18*100 | 5-18*110 | 7-22*135 |
| Distance from spindle center to column guide rail | mm | 650 | 770 | 870 |
| Distance from spindle end face to worktable | mm | 120-720 | 120-770 | 170-870 |
| Spindle taper hole (model/installation size) | BT40/Φ150 | BT40/Φ150 | BT50/Φ155 | |
| Spindle speed | rpm | Belt drive 10000 | Belt drive 10000 | 8000 |
| X/Y axis ball screw specification | mm | 4012 | 4010 | 6310 |
| Z-axis ball screw specification | mm | 4012 | 5010 | 5010 |
| X axis rail specification (roller) | MSA45LA | MSA45LA(Six sliding blocks) | MSA55LA(Six sliding blocks) | |
| Y-axis rail specification (roller) | MSA45LA | MSA45LA(Four sliding blocks) | MSA55LA(Four sliding blocks) | |
| Z-axis rail specification (roller) | MSA45SLS | MSA45SLS(Six sliding blocks) | MSA55SLS(Six sliding blocks) | |
| X/Y/Z motor connection mode | Direct connection | Direct connection | Direct connection | |
| Main motor power | kw | 11 | 11~15 | 15-18.5 |
| Magazine capacity | hold | 24 | 24 | 24 |
| Mechanical dimensions | mm | 3250*2700*2900 | 3800*3050*3100 | 4400*3400*3200 |
| Worktable bearing | kg | 800 | 800 | 1500 |
| Net weight of machine tool | T | 7.5 | 10 | 13 |
