Equipment parameters：

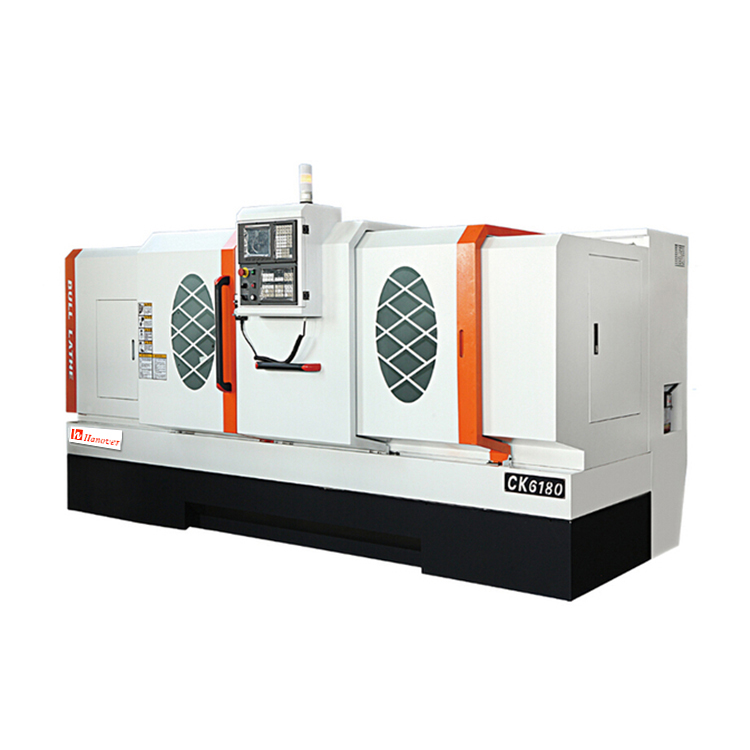

| Entry name | Unit | CK6150L | CK6150 | CK6180 |
| Maximum turning diameter on lathe body | mm | 510 | 520 | 860 |
| Maximum turning diameter on sliding plate | mm | 230 | 295 | 540 |
| Maximum machining length | mm | 1000 | 1000 | 1000/1500/2000/3000 |
| Main transmission form | Three gear frequency conversion | Three gear frequency conversion | Four gear frequency conversion | |
| Spindle speed range | r/min | 58-1700 | 60-1600 | 30-835 |
| Diameter of spindle hole | mm | Φ82 | Φ82 | Φ105 |
| Taper of spindle hole front end | 1：20/Φ90 | 1：20/Φ90 | 1：20/Φ145 | |
| Maximum stroke in X direction | mm | 255 | 285 | X direction：450 |
| X-axis guide rail | mm | linear guide rail 25 mm | ||
| Z-axis guide rail | mm | linear guide rail 30mm | ||
| positioning accuracy | mm | 0.015 | 0.015 | X direction：0.025 Z direction：0.03 |
| Repetitive positioning accuracy | mm | ±0.004 | ±0.004 | X direction：0.01 Z direction：0.015 |
| Workpiece machining accuracy | IT6-IT7 | IT6-IT7 | IT6-IT7 | |
| Workpiece surface roughness | Ra1.6 | Ra1.6 | Ra1.6 | |
| Diameter of tailstock sleeve | mm | Φ75 | Φ75 | Φ130 |
| Tailstock sleeve stroke | mm | 150 | 150 | 250 |
| Taper of taper hole of tailstock sleeve | MT5# | MT5# | MT6# | |
| Number of tool holders (electric) | 4 | 4 | 4 | |
| Chuck specification (manual chuck) | mm | K11200 | K11250 | K11320 |
| Machine tool appearance dimensions (L * W * H) | mm | 2600*1500*1800 | 2600*1500*1800 | 3200(3700)(4200)(5500)*2100*1900 |
| Net weight of machine tool | kg | 2850 | 2850 | 3400/3700/5200/3600/3900/5400 |
The flat bed CNC lathes of our company can be made into premium machines, standard machines, high-quality machines and special machines, which can meet the different needs of different types of customers, and help to scale production, so as to achieve a win-win situation for customers and manufacturers.
