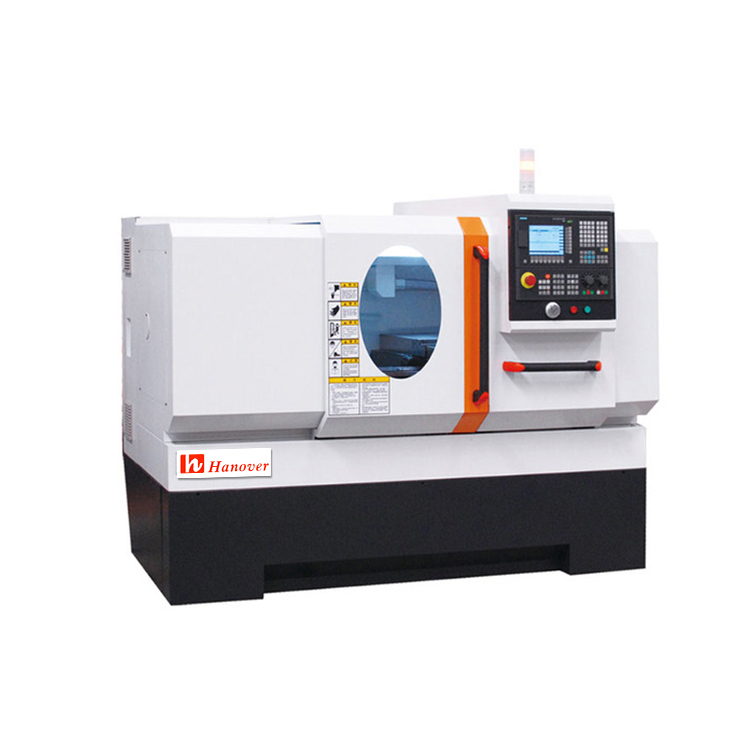

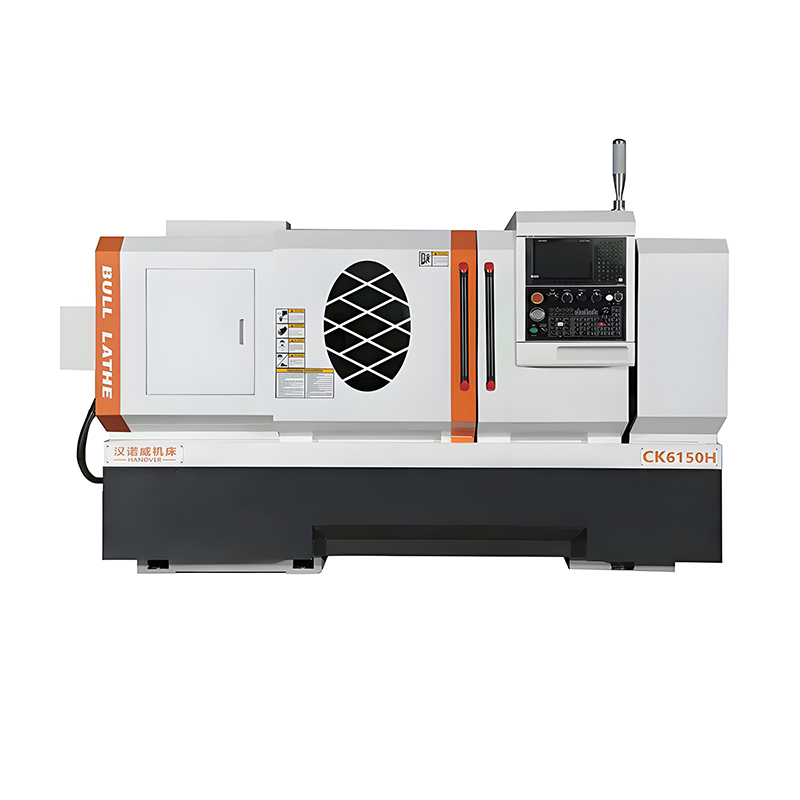

Single Spindle CNC Lathe

The lathe is novel in appearance, simple and elegant, and fine in workmanship.


Equipment features:

1. The design concept and process method of sheet metal for vertical machining and oblique turning are introduced into the flat bed lathe. The CNC optical fiber laser cutting machine and CNC five axis bending machine are used to produce sheet metal for the flat car, which makes the machine tool look novel, simple and elegant, and the work is fine.

2. The frequency converter is a closed loop, which directly detects the spindle encoder signal. Once the spindle speed drops, the closed-loop control is quickly started, and the output torque within 30s is more than twice the rated value, which greatly reduces the possibility of being stuck.

3. The headstock or gearbox below the four mechanical gears can realize automatic shifting (patented technology, pending application). After automatic shifting, the gears can be automatically identified without changing any habits of the operator.

4. If necessary, the power of the main motor can be increased, such as 3.0KW to 4.0KW, 7.5KW to 9.5KW, and the torque of each speed segment can be significantly increased through strict testing of the dynamometer.

5. Having absorbed the suggestions of many customers, the water, oil, electricity and gas are well treated, there are many sealing, anti-collision, protection and heat dissipation measures, the reliability of parts is good, the inspection items and means are refined, and the process is standardized and meticulous.

6. The flat bed CNC lathes of our company can be made into premium machines, standard machines, high-quality machines and special machines, which can meet the different needs of different types of customers, and help to scale production, so as to achieve a win-win situation between customers and manufacturers.

Equipment parameters:

Entry   name Unit CK6140H CK6150H
Maximum   turning diameter mm 420 500
Maximum   turning diameter on carriage mm 230 290
Maximum   workpiece length mm 750 1000
Maximum stroke   of sliding plate (X direction) mm 220 295
Width of guide   rail mm 350(integral bed   foot) 400(integral bed   foot)
Diameter of   spindle through hole mm Φ66 Φ82
Spindle speed   range rpm 200-3000(Sleeve   spindle) 200- 2000(Independent   spindle)
Main motor   power kw 5.5 7.5
Taper hole of   tailstock sleeve
MT4# MT5#
Maximum travel   of sleeve mm 100 150
Positioning   accuracy mm 0.01 0.01
Repetitive   positioning accuracy mm ±0.003 ±0.005
Processing   ovality mm 0.005 0.005
Processing   roughness μm Ra1.0 Ra1.0
Number of   tool holders (electric) 4 4
Chuck   specification (manual chuck) mm K11200 K11250
Input power
50HZ 380V 50HZ 380V
Total power kw 9 12
Appearance   dimensions (L * W * H) mm 2100*1400*1700 2600*1500*1800
Net weight of   machine tool kg 1950 2450
