Innovative single spindle CNC lathe

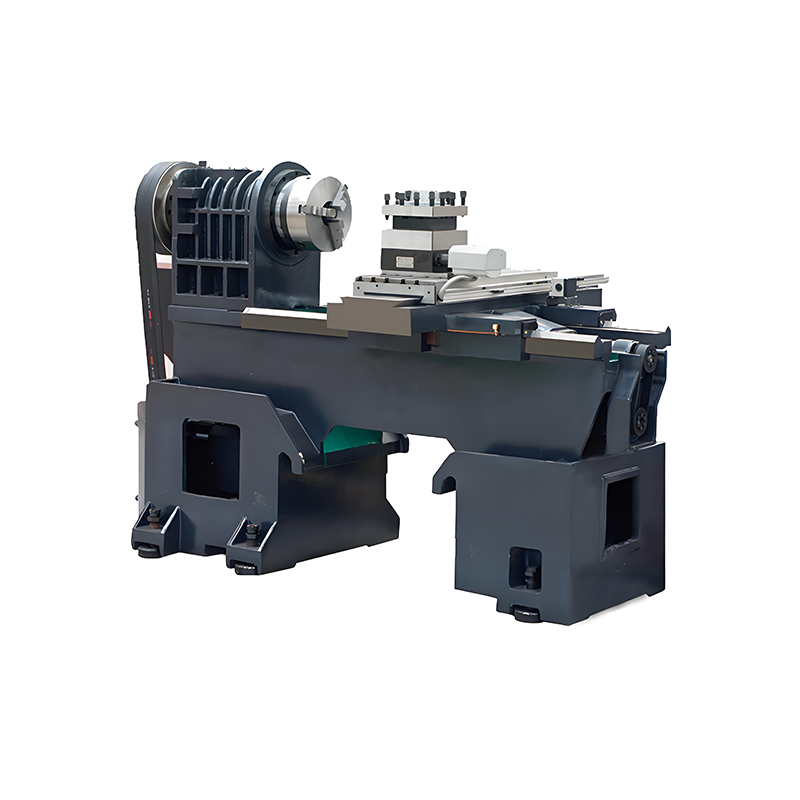

A mechanical structure that combines performance, reliability, and optional scalability

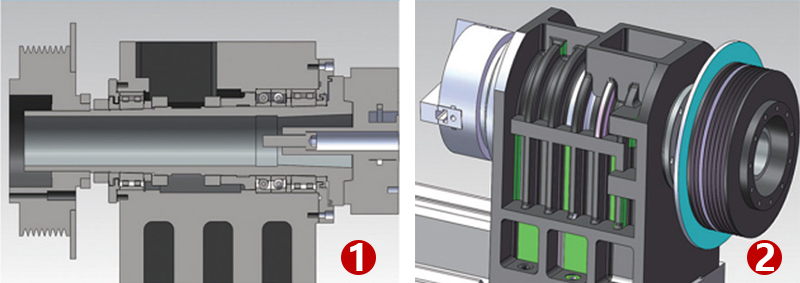

1. High rigidity spindle structure: Double row short cylindrical roller bearings and 40 ° paired bearings serve as the main support, while double row short cylindrical roller bearings serve as the secondary support. Multi maze design with good waterproof effect.
2. Upgrade to C-axis: It can be equipped with a brake device, coupled with an AC servo motor and synchronous belt drive, to become a C-axis for drilling, milling, and grinding.

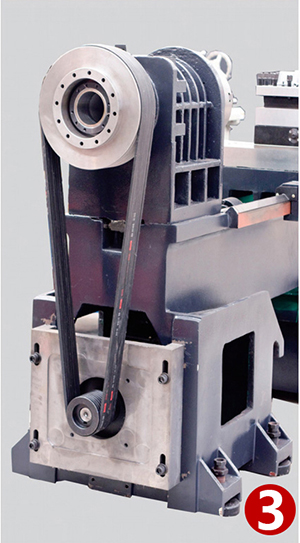

3. Main transmission structure: The main motor and spindle are powered by 8 triangular belts with a 1:3 large reduction ratio. When using a 15kW AC servo motor, the torque of the spindle is equivalent to 15 times the output torque of a 7.5kW ordinary motor.
4. Double triangular track center screw: symmetrical force distribution and good guidance; No lateral sway, high guiding accuracy; Suitable for installing power heads.

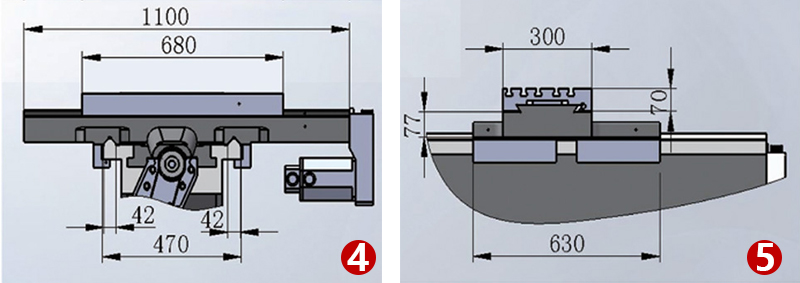

5. X-direction skateboard: The skateboard has a length of 1100mm, a large contact surface, good stability, excellent shock resistance, and durability. The skateboard has large dimensions in terms of length, width, and height, and is equipped with a T-shaped groove. Whether it is installing and arranging knives, tool holders, or power heads, it is simple, fast, and easy to adjust, with strong flexibility.

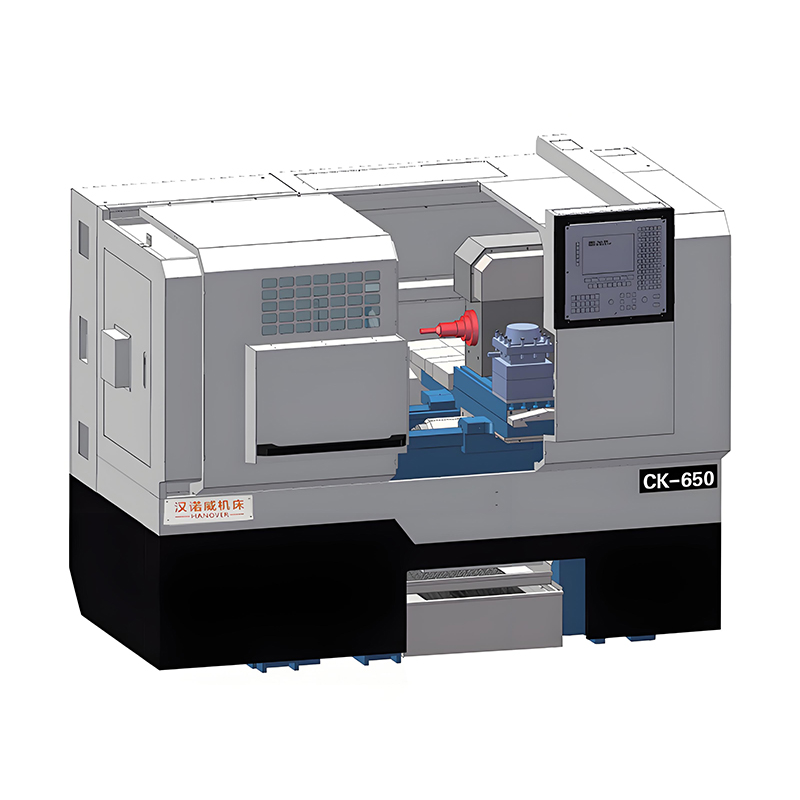

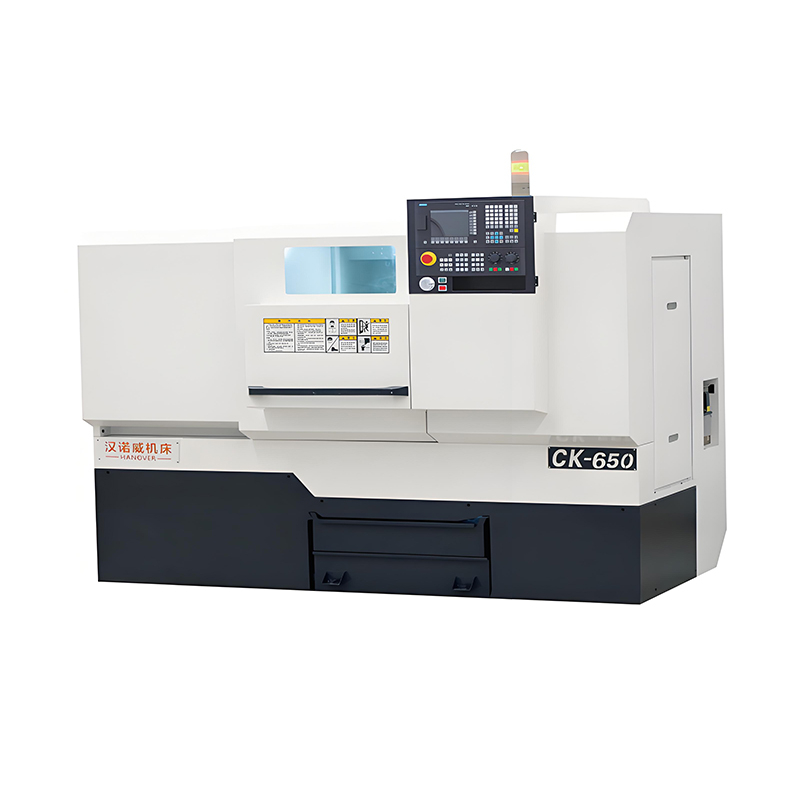

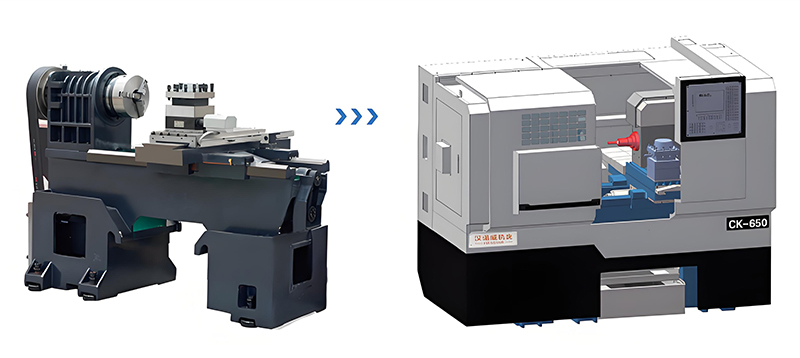

CK-650
Innovative single spindle CNC lathe
Independent spindle, double triangular track, central screw, X-direction ultra large stroke accuracy and cutting force, excellent scalability, and can be upgraded to a composite machine tool

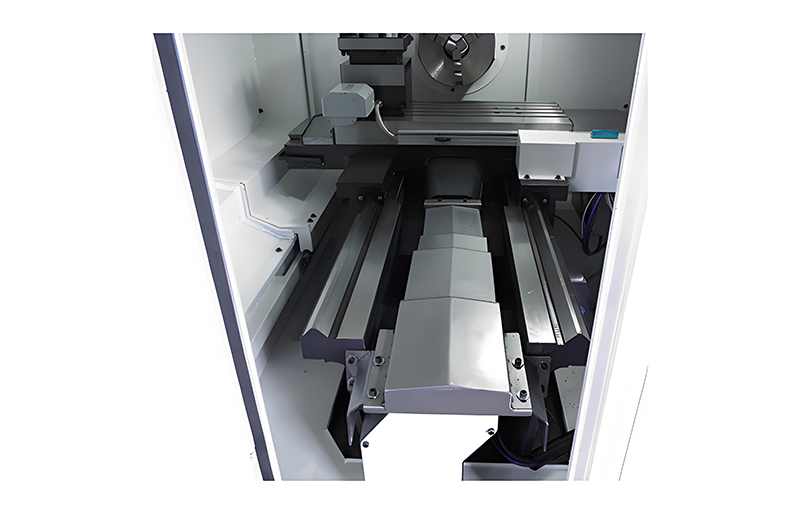

Screw protection
Exquisite and beautiful protection effectively protects functional components such as ball screws and servo motors.
