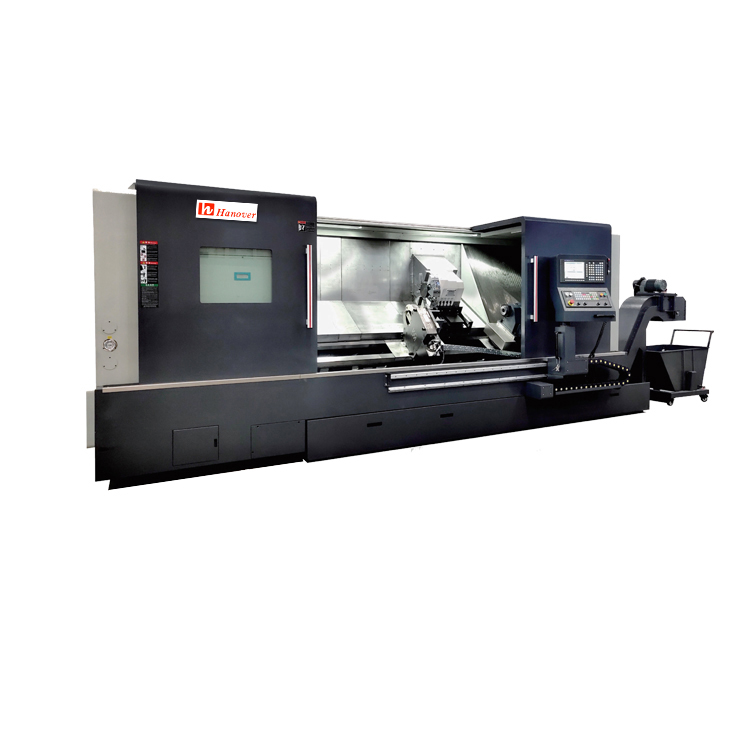

Equipment features:
All shafts adopt box type guide rail design, with better mobility. The box type guide rail has a strong ability to counteract the vibration caused by cutting, reduce tool loss, and improve processing stability.
The design of the X axis of the sealed and built-in structure series can minimize the damage of the turret to the chips by using the sealed and built-in structure.
Equipment parameters:
| Main parameters (unit: mm) | ||
| Entry name | CKX750H/1000/1500/2000 | CKX750HM/1000/1500/2000 |
| Turning diameter on the bed surface | Φ730mm | Φ730mm |
| Maximum machining diameter | Φ630mm | Φ560mm |
| Machining diameter on sliding plate | Φ450mm | Φ440mm |
| Maximum machining length | 740/1020/1640/2240 | 630/930/1530/2130 |
| Spindle head form | A2-8(10")Optional A2 11(12") | A2-8 Optional A2 11(12") |
| Spindle motor power | 22kw | 22kw |
| Maximum spindle speed | 2800rpm | 2800rpm |
| Diameter of spindle hole | Φ87mm | Φ87mm |
| Bar diameter | Φ75mm | Φ75mm |
| X/Z axis screw rod specification | 4008/5010 | 4008/5010 |
| X-axis limit stroke | 325mm | 325mm |
| X/Z axis motor torque | 30N.M | 30N.M |
| Z-axis limit stroke | 760/1100/1700/2300 | 760/1100/1700/2300 |
| X/Z axis connection mode | Direct connection | Direct connection |
| Machining accuracy | IT6 | IT6 |
| Repetitive positioning accuracy | 0.003mm | 0.003mm |
| Servo turret | NC125-V12-440 | BMT65-V12/ER32/4000rpm |
| Center height dimension of turret | 125 | 125 |
| Tool size | 25*25 | 25*25 |
| Dimensions of boring tool holder | 40mm | 40mm |
| Quill diameter | 100mm | 100mm |
| Sleeve stroke | 80mm | 80mm |
| Maximum stroke of tailstock | 785/1085/1685/2285 | 785/1085/1685/2285 |
| Taper hole of tailstock sleeve | Mohs 5# | Mohs 5# |
| Bed form and inclination (L * W * H) | Integral 30° 4200/1900/1850 | Integral 30° 4200/1900/1850 |
| Weight (about weight) T | 7.5/8.5/10.5/12.5T | 8/9/11/13T |
| System optional： | FANUC ， MITSUBISHI, SIEMENS, GSK |
