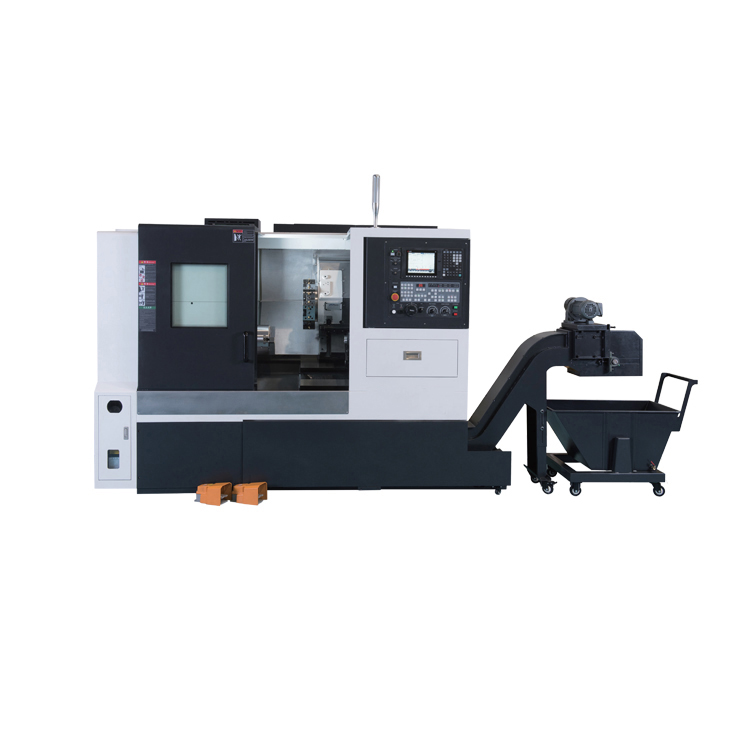

Equipment characteristics：
1.45 ° inclined bed structure, with processing stability, and easier chip removal;
2. The X and Z axes are wide and moist hard rail slideways, which are designed with large span, and highlight the unique stability during heavy cutting. They are manually shoveled after hardening treatment and precision grinding;
3. The bed is made of HT300 cast iron and has a high rigid structure;
4. Rapid feed rate of X/Z axis: 24 m/min;
Equipment parameters：
| Main parameters (unit: mm) | ||
| Entry name | CKX450H | CKX450HM |
| Turning diameter on the bed surface | Φ450mm | Φ600mm |
| Maximum machining diameter | Φ360mm | Φ360mm |
| Machining diameter on sliding plate | Φ300mm | Φ300mm |
| Maximum machining length | 520mm | 500mm |
| Spindle head form | A2-6(8") | A2-6(8") |
| Spindle motor power | 11/15kw | 11/15kw |
| Maximum spindle speed | 3500rpm | 3500rpm |
| Diameter of spindle hole | Φ61mm | Φ61mm |
| Bar diameter | Φ52mm | Φ52mm |
| X/Z axis screw rod specification | 3210/4010 | 3210/4010 |
| X-axis limit stroke | 180mm | 180mm |
| X/Z axis motor torque | 15N.M | 15N.M |
| Z-axis limit stroke | 560mm | 560mm |
| X/Z axis connection mode | Direct connection | Direct connection |
| Machining accuracy | IT6 | IT6 |
| Repetitive positioning accuracy | 0.003mm | 0.003mm |
| Servo turret | NC145-V10-330 | BMT45/12T/ER20/4000rpm |
| Center height dimension of turret | 145 | 145 |
| Tool size | 25*25 | 25*25 |
| Dimensions of boring tool holder | 40mm | 40mm |
| Quill diameter | 80mm | 80mm |
| Sleeve stroke | 80mm | 80mm |
| Maximum stroke of tailstock | 400mm | 400mm |
| Taper hole of tailstock sleeve | Mohs 4# | Mohs 4# |
| Bed form and inclination (L * W * H) | Integral 45° 2700/1800/1900 | Integral 45° 2700/1800/2100 |
| Weight (about weight) T | 4.5T | 4.8T |
| System optional： | FANUC ， MITSUBISHI, SIEMENS, GSK | |
Equipment characteristics：
1.45 ° inclined bed structure, with processing stability, and easier chip removal;
2. The X and Z axes are wide and moist hard rail slideways, which are designed with large span, and highlight the unique stability during heavy cutting. They are manually shoveled after hardening treatment and precision grinding;
3. The bed is made of HT300 cast iron and has a high rigid structure;
4. Rapid feed rate of X/Z axis: 24 m/min;
Equipment parameters：
| Main parameters (unit: mm) | ||
| Entry name | CKX450H | CKX450HM |
| Turning diameter on the bed surface | Φ450mm | Φ600mm |
| Maximum machining diameter | Φ360mm | Φ360mm |
| Machining diameter on sliding plate | Φ300mm | Φ300mm |
| Maximum machining length | 520mm | 500mm |
| Spindle head form | A2-6(8") | A2-6(8") |
| Spindle motor power | 11/15kw | 11/15kw |
| Maximum spindle speed | 3500rpm | 3500rpm |
| Diameter of spindle hole | Φ61mm | Φ61mm |
| Bar diameter | Φ52mm | Φ52mm |
| X/Z axis screw rod specification | 3210/4010 | 3210/4010 |
| X-axis limit stroke | 180mm | 180mm |
| X/Z axis motor torque | 15N.M | 15N.M |
| Z-axis limit stroke | 560mm | 560mm |
| X/Z axis connection mode | Direct connection | Direct connection |
| Machining accuracy | IT6 | IT6 |
| Repetitive positioning accuracy | 0.003mm | 0.003mm |
| Servo turret | NC145-V10-330 | BMT45/12T/ER20/4000rpm |
| Center height dimension of turret | 145 | 145 |
| Tool size | 25*25 | 25*25 |
| Dimensions of boring tool holder | 40mm | 40mm |
| Quill diameter | 80mm | 80mm |
| Sleeve stroke | 80mm | 80mm |
| Maximum stroke of tailstock | 400mm | 400mm |
| Taper hole of tailstock sleeve | Mohs 4# | Mohs 4# |
| Bed form and inclination (L * W * H) | Integral 45° 2700/1800/1900 | Integral 45° 2700/1800/2100 |
| Weight (about weight) T | 4.5T | 4.8T |
| System optional： | FANUC ， MITSUBISHI, SIEMENS, GSK | |
