Features:
1. It has the fast and accurate tool changing performance of the servo turret, and it is matched with the power milling of the high-speed power shaft to achieve turning
2. Excellent machining capability of milling compound
3. The tool holder is installed with a high-cutting BMT installation interface
4. The power transmission shaft is driven by a servo spindle motor
5. The power output adopts the DIN1809 in-line method
6. The high speed of the rotary tool can reach 5000RPM
7. The power turret adopts a positive Y-axis design, and the center of gravity drive structure of the box in the box is integrated with the turret, so that the force is balanced during processing;
8. Equipped with high-rigidity servo power turret to achieve axial and radial Y-axis milling functions, spindle C-axis interpolation, indexing, positioning functions, and spindle hydraulic disc brakes.
Equipment parameters:
Main parameters (unit: mm) | |

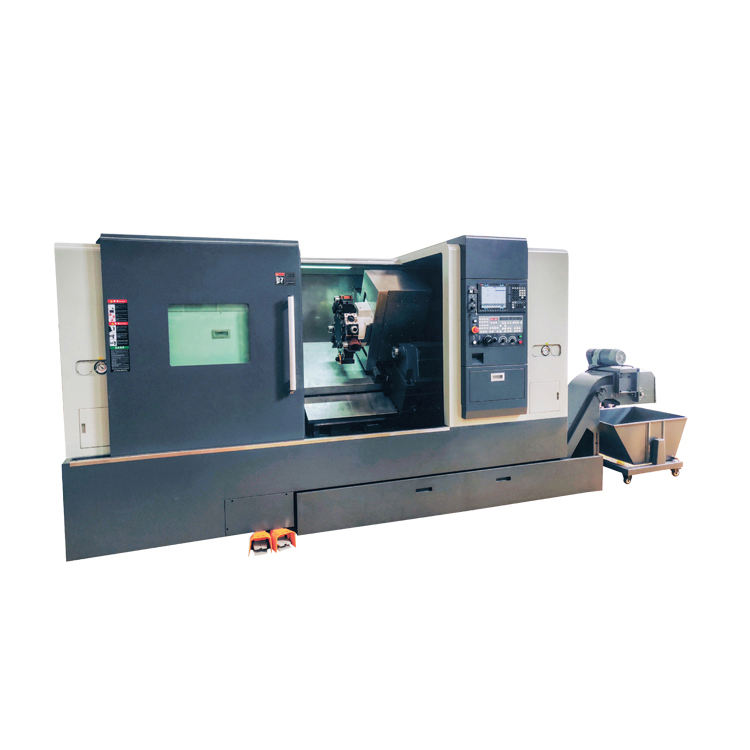

Entry name | CKX750HMY/1000/1500/2000 |
Turning diameter on the bed surface | Φ920mm |
Maximum machining diameter | Φ600mm |
Machining diameter on sliding plate | Φ440mm |
Maximum machining length | 530/830/1430/2030 |
Spindle head form | A2-8(10")Optional A2 11(12") |
Spindle motor power | 22kw |
Maximum spindle speed | 2800rpm |
Diameter of spindle hole | Φ87mm |
Bar diameter | Φ75mm |
X/Z axis screw rod specification | 4008/3208/5010 |
X-axis limit stroke | 325mm/±60 |
X/Z axis motor torque | 30N.M |
Z-axis limit stroke | 760/1085/1685/2285 |
X/Z axis connection mode | Direct connection |
Machining accuracy | IT6 |
Repetitive positioning accuracy | 0.003mm |
Servo turret | BMT65/ER32/4000rpm |
Tool size | 25*25 |
Dimensions of boring tool holder | 40mm |
Quill diameter | 100mm\130mm(Optional built-in rotation) |
Sleeve stroke | 80mm |
Maximum stroke of tailstock | 785/1085/1685/2285 |
Taper hole of tailstock sleeve | Mohs 5# |
Bed form and inclination (L * W * H) | Integral 30° 4200/1900/1850 |
Weight (about weight) T | 7.5/8.5/10.5/12.5T |
System optional: | FANUC , MITSUBISHI, SIEMENS, GSK |
