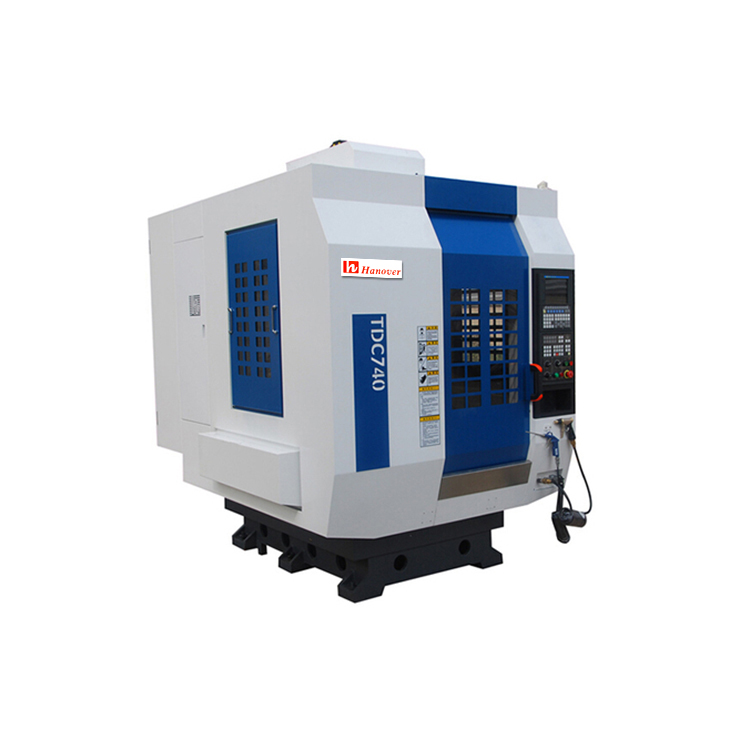

Equipment features:
1. Three wire rail structure, large lead screw, 16T umbrella type tool magazine, mature and stable drilling and tapping machine structure.
2. Spindle speed ≥ 12000 rpm, three-axis fast moving speed ≥ 48 m/min.
3. Conventional threaded holes made of aluminum alloy M3~M8 can be tapped within 1.3 seconds.
4. It looks light. Because of the high speed of the cutter, the cutting speed is fast, and the processing efficiency is higher.
5. Wide base, large herringbone column, fully optimized design, enhanced functions and significantly improved performance.
Equipment parameters：
| Entry name | TDC540 | TDC740 | |
| Worktable size (length * width) | mm | 600*400 | 800*400 |
| Table stroke (X.Y.Z) | mm | 510*400*310 | 700*400*400 |
| T-slot size (number size * spacing) | mm | 3-14*100 | 3-14*100 |
| Spindle taper hole | BT30 | BT30 | |
| Spindle speed | rpm | 20000/24000 (Optional) | |
| Magazine capacity | 16 | 16 | |
| Tool to tool exchange time | sec | 2.8 | 2.8 |
| Maximum cutting speed | m/min | 10 | 10 |
| Fast moving speed | m/min | 60 | 48 |
| Distance from spindle center to column guide rail | mm | 460 | 400 |
| positioning accuracy | mm | ±0.003 | ±0.003 |
| Repetitive positioning accuracy | mm | ±0.002 | ±0.002 |
| Total power | kw | 15 | 15 |
| Worktable bearing | kg | 200 | 250 |
| Net weight of machine tool | kg | 3200 | 3500 |
