Why Is The Bed of The CNC Horizontal Turning Machine of Slant Bed Design?

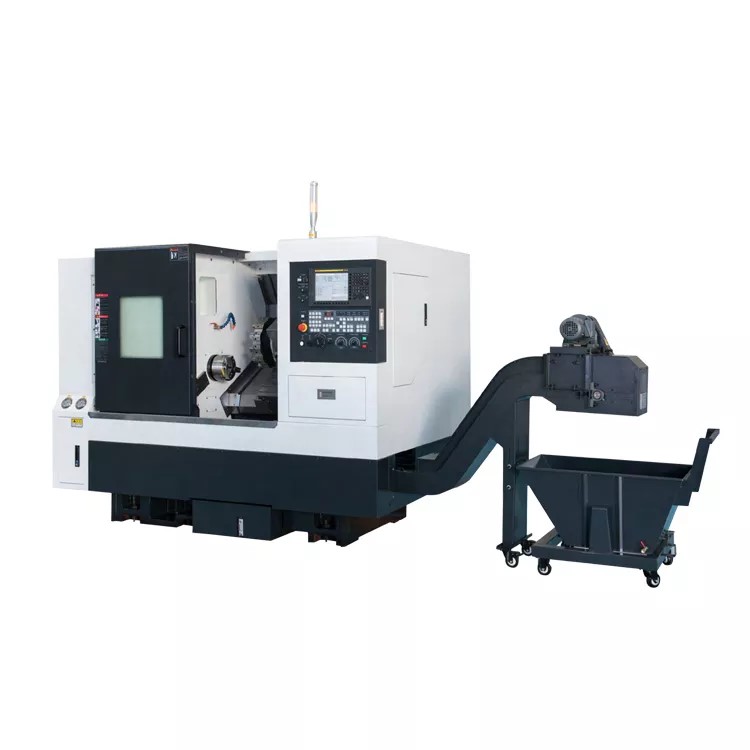

The Rationale Behind the Slant Bed Design in CNC Horizontal Turning Machines

The design of machine tools plays a pivotal role in determining their performance, precision, and durability. Among CNC horizontal turning machines, the slant bed configuration—characterized by a bed inclined at angles typically between 30° and 60°—has emerged as a dominant choice in modern manufacturing. This essay explores the technical, operational, and ergonomic advantages of slant bed designs, contrasting them with traditional flat-bed configurations. By analyzing factors such as structural rigidity, chip evacuation, thermal stability, and operator accessibility, we uncover why this design has become the industry standard for high-precision machining.

1. Structural Rigidity and Load Distribution

A primary reason for adopting a slant bed design is its superior structural rigidity compared to flat-bed machines. The inclined orientation allows for a more compact and robust frame, minimizing deflection under cutting forces.

a. Geometry and Stress Distribution

In flat-bed machines, the bed’s horizontal orientation creates a long, unsupported span between the headstock and tailstock. This can lead to sagging or vibration during heavy cuts, reducing dimensional accuracy. In contrast, the slant bed’s inclined surface distributes cutting forces more evenly across the structure. The shorter distance between critical components (e.g., spindle and guideways) reduces bending moments, enhancing rigidity.

b. Material and Manufacturing Considerations

Slant beds are often fabricated using cast iron or welded steel structures, which offer high damping capacity to absorb vibrations. The inclined shape also allows for thicker cross-sections in key load-bearing areas, further improving stiffness. Advanced manufacturing techniques, such as finite element analysis (FEA), optimize the bed’s geometry to withstand dynamic loads, ensuring consistent performance over extended periods.

2. Enhanced Chip Evacuation and Cooling

Efficient chip removal is critical for maintaining workpiece quality and preventing machine damage. Slant bed designs excel in this aspect due to gravity-assisted chip flow.

a. Gravity-Driven Chip Flow

In flat-bed machines, chips tend to accumulate around the cutting zone, potentially causing thermal distortion or scratching the workpiece. On slant beds, the inclined surface directs chips downward into a collection tray or conveyor system. This reduces the risk of chip re-cutting and minimizes heat buildup, improving surface finish and tool life.

b. Coolant Management

The slant bed’s design also facilitates better coolant circulation. Coolant sprayed onto the workpiece and cutting tool flows downward with chips, preventing pooling and reducing the likelihood of corrosion or bacterial growth. This is particularly advantageous in high-speed machining, where heat generation is significant.

3. Thermal Stability and Precision

Temperature fluctuations during machining can lead to dimensional inaccuracies. Slant bed designs mitigate thermal distortion through strategic layout and improved heat dissipation.

a. Symmetrical Heat Distribution

The inclined bed’s symmetrical structure distributes heat generated by the spindle, bearings, and cutting process more evenly. In contrast, flat-bed machines often experience uneven thermal expansion due to their asymmetrical layout, causing the bed to warp. Slant beds minimize this effect, ensuring consistent workpiece tolerances.

b. Isolation of Heat Sources

Modern slant bed machines integrate thermal insulation between the spindle and bed, further reducing heat transfer. Additionally, some designs incorporate cooling channels within the bed to maintain stable temperatures during prolonged operation.

4. Ergonomics and Operator Accessibility

Slant bed designs prioritize user-friendly operation, reducing fatigue and improving workflow efficiency.

a. Optimal Working Height

The inclined bed positions the workpiece closer to the operator’s natural working height, eliminating the need to bend or reach awkwardly. This ergonomic advantage is particularly beneficial in manual loading scenarios, where repetitive tasks can strain operators.

b. Clear Line of Sight

The slant bed’s open architecture provides unobstructed visibility of the cutting zone, enabling operators to monitor tool engagement and workpiece quality in real time. This reduces the risk of errors and allows for immediate adjustments.

c. Easier Maintenance

Access to critical components such as guideways, spindles, and lubrication systems is simplified in slant bed machines. The inclined layout minimizes obstructions, streamlining routine maintenance and repairs.

5. Cutting Performance and Tool Life

The combination of rigidity, chip evacuation, and thermal stability in slant bed machines directly enhances cutting performance.

a. Higher Cutting Speeds and Feeds

The robust structure allows for aggressive machining parameters, such as higher spindle speeds and feed rates, without compromising precision. This translates to shorter cycle times and increased productivity.

b. Improved Tool Engagement

The inclined orientation optimizes the angle at which the cutting tool interacts with the workpiece, reducing radial forces and minimizing tool deflection. This results in smoother cuts, better surface finishes, and extended tool life.

6. Economic and Industrial Impact

The adoption of slant bed machines has reshaped the manufacturing landscape, driving innovation and cost efficiency.

a. Market Demand and Standardization

Slant bed designs dominate the CNC turning market, accounting for over 70% of new machine installations in high-precision industries like aerospace and automotive. Their versatility and reliability have made them the default choice for manufacturers worldwide.

b. Customization and Modularity

Modern slant bed machines are highly customizable, with options for multiple turrets, live tooling, and automation interfaces. This modularity allows businesses to adapt to evolving production needs without significant capital investment.

7. Challenges and Future Innovations

While slant bed designs offer numerous advantages, they are not without limitations.

a. Initial Cost and Complexity

The precision manufacturing required for slant beds increases upfront costs compared to flat-bed machines. Additionally, the inclined geometry complicates the integration of certain accessories, such as bar feeders.

b. Advancements in Hybrid Designs

To address these challenges, researchers are exploring hybrid configurations that combine slant bed principles with additive manufacturing. 3D-printed composite materials may reduce weight while maintaining rigidity, lowering production costs.

Conclusion

The slant bed design in CNC horizontal turning machines represents a triumph of engineering ingenuity over traditional constraints. By optimizing rigidity, chip evacuation, thermal stability, and ergonomics, this configuration has redefined machining performance. As industries demand ever-higher precision and efficiency, the slant bed’s enduring popularity underscores its role as a cornerstone of modern manufacturing.

In a competitive global market, the choice of machine tool design is a strategic decision. The slant bed’s ability to balance functionality, durability, and user experience positions it as an indispensable asset for businesses aiming to stay ahead in the era of smart manufacturing.
