The Versatile CNC Lathe with Inclined Bed

Views: 0     Author: Site Editor     Publish Time: 2025-07-30      Origin: Site

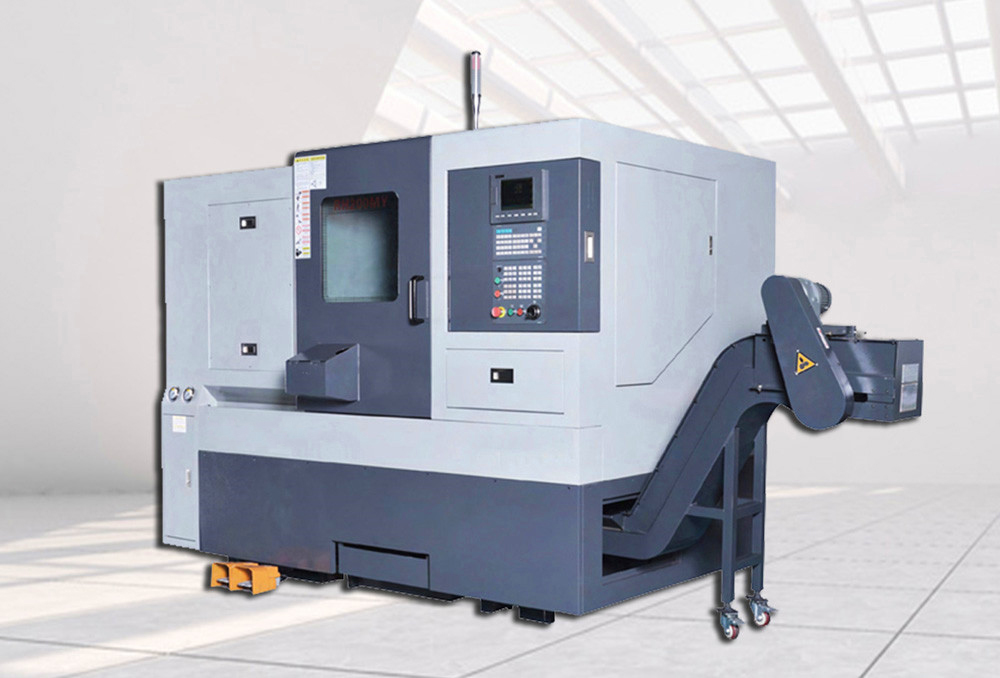

CNC lathe

In the dynamic landscape of modern manufacturing, Computer Numerical Control (CNC) lathes stand as cornerstones of precision machining. Among these, the CNC lathe with an inclined bed has carved out a significant niche, offering a unique blend of functionality, performance, and efficiency.


Design and Structure

The inclined bed of a CNC lathe is one of its most defining features. Typically, the bed is angled between 30° and 75° relative to the horizontal, with 45° being a common inclination. This slanted design is not merely aesthetic; it serves several crucial purposes. The bed is often crafted from high - quality cast iron, which is known for its excellent rigidity and damping properties. For instance, materials like HT - 300 cast iron can withstand substantial cutting forces without significant deflection, ensuring stable machining operations.


The inclined structure also impacts the lathe's other components. The X and Z axes, which control the movement of the cutting tool and the workpiece, are mounted on the inclined bed. Linear guides, such as precision linear roller guides or Taiwan - made (P grade) four - slider and roller line rails, are commonly used. These guides offer high rigidity, low friction, and long - term accuracy, even during extended and demanding machining tasks.


Working Principles

When in operation, the workpiece is firmly held in a chuck or collet, which is attached to the spindle. The spindle, a vital part of the lathe, rotates the workpiece at high speeds. Many modern inclined - bed CNC lathes are equipped with high - rigidity spindle units. Some spindles use a closed - grease lubrication system, enabling smooth rotation at high speeds. The spindle motor, usually an AC servo motor, provides stepless speed variation, high torque output, and a wide speed range. This versatility allows the lathe to handle different materials and cutting operations, from delicate finishing cuts to heavy - duty roughing.


As the spindle rotates the workpiece, the cutting tool, mounted on the turret, moves along the X and Z axes according to pre - programmed instructions. Turrets on these lathes can be hydraulic 8 - station turrets or, in some cases, optional 12 - station hydraulic servo turrets. This multi - station design enables quick and accurate tool changes, allowing for a variety of machining operations, including turning, threading, drilling, and milling, to be performed without manual intervention between steps.


Advantages over Traditional Lathes

Superior Chip Removal

One of the most notable advantages of CNC lathes with inclined beds is their efficient chip removal system. During machining, chips are generated as the cutting tool removes material from the workpiece. In traditional flat - bed lathes, chips can accumulate on the bed and guide rails, causing issues such as interference with the machining process and potential damage to the tool. However, in inclined - bed lathes, the slanted surface of the bed allows chips to slide down by gravity. This natural chip - evacuation mechanism is often complemented by chip conveyors, which are standard on many models. The result is a cleaner working area, reduced risk of tool damage, and improved surface finish on the workpiece.


Enhanced Stability and Rigidity

The inclined - bed design offers increased stability and rigidity compared to flat - bed lathes. The slanted bed distributes cutting forces more evenly, minimizing stress on the machine's structure. Additionally, the cross - sectional area of an inclined - bed lathe is generally larger than that of a flat - bed lathe of the same size. This larger cross - section makes the inclined - bed lathe more resistant to bending and torsion, which is crucial for maintaining high machining accuracy, especially when working on complex parts or performing heavy - duty cutting.


Expanded Machining Capacity

Inclined - bed CNC lathes often have a larger work envelope and can accommodate larger workpieces. The design allows for longer X - axis travel in many cases, enabling more cutters to be arranged on the turret. This increased machining capacity, combined with the ability to perform multiple operations in a single setup, makes these lathes highly efficient for mass production. They can handle a wide range of parts, from small, intricate components to larger, more complex workpieces, making them suitable for various industries.


Applications in Different Industries

Automotive Industry

In the automotive sector, CNC lathes with inclined beds play a pivotal role. Engine components such as crankshafts, camshafts, and cylinder sleeves require high precision and tight tolerances. The stability and accuracy of inclined - bed lathes make them ideal for machining these parts. Transmission components like gears and shafts also benefit from the multi - operation capabilities of these lathes, as they can be turned, threaded, and drilled in one setup, reducing production time and costs.


Aerospace Industry

The aerospace industry demands the utmost precision and quality in component manufacturing. Inclined - bed CNC lathes are used to machine critical aerospace components, including turbine blades, landing gear parts, and aircraft engine components. The ability of these lathes to handle complex geometries and maintain tight tolerances ensures that the components meet the stringent safety and performance requirements of the aerospace sector. The enhanced chip removal and rigidity of inclined - bed lathes are particularly important when working with high - strength aerospace materials such as titanium and nickel - based alloys.


Medical Device Manufacturing

Medical device manufacturing requires extreme precision and a clean working environment. CNC lathes with inclined beds are used to produce components for surgical instruments, implants, and medical equipment. The efficient chip removal system helps keep the machining environment clean, reducing the risk of contamination. The high - precision machining capabilities ensure that medical components meet the exacting standards for size, shape, and surface finish, which are essential for the proper functioning of medical devices.
